因为要做C++软件实习的大作业,所以选择了易于上手的Qt作为图形化界面程序开发框架,IDE自然就是Qt Creator了。但是Qt程序的打包发布却是不接地气,因为依赖实在是太多了。有的时候加好依赖后在自己的开发环境上可以运行,但脱离开发环境却依旧报

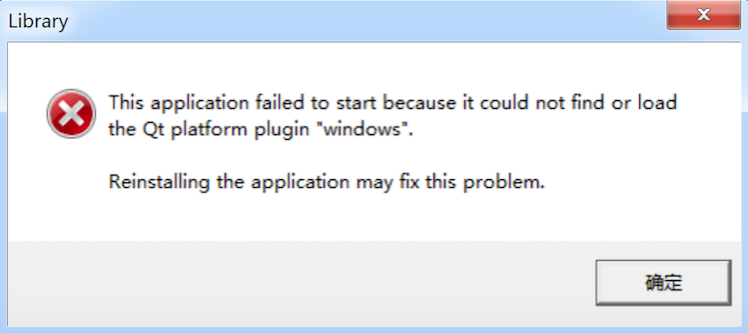

This application failed to start because it could not find or load the Qt platform plugin “windows”.

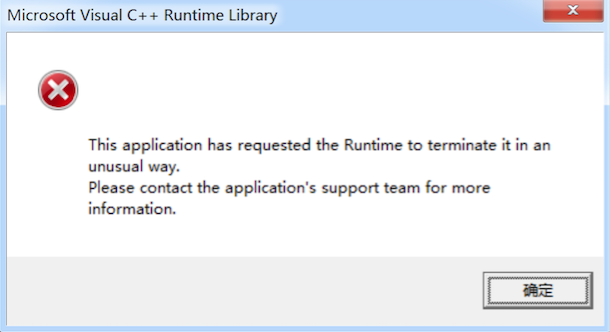

甚至
于是现在亟待解决的问题就是如何能够找到所有所需依赖并能够将其打包引用。
查找依赖工具
通过阅读官方文档发现,Qt里面内置了一个dll依赖性检查工具——windeploy.exe
。这个程序应当在~/Qt/Qt5.5.0/5.5/mingw492_32/bin/
下,通过命令提示符执行它可以得到使用方法:
C:\Users\Shintaku>C:\Qt\Qt5.5.0\5.5\mingw492_32\bin\windeployqt.exe
Please specify the binary or folder.
Usage: C:\Qt\Qt5.5.0\5.5\mingw492_32\bin\windeployqt.exe [options] [files]
Qt Deploy Tool 5.5.0
The simplest way to use windeployqt is to add the bin directory of your Qt installation
(e.g. <QT_DIR\bin>) to the PATH variable and then run:
windeployqt <path-to-app-binary>
If ICU, ANGLE, etc. are not in the bin directory, they need to be in the PATH variable.
If your application uses Qt Quick, run:
windeployqt --qmldir <path-to-app-qml-files> <path-to-app-binary>
Options:
-?, -h, --help Displays this help.
-v, --version Displays version information.
--dir <directory> Use directory instead of binary directory.
--libdir <path> Copy libraries to path.
--debug Assume debug binaries.
--release Assume release binaries.
--release-with-debug-info Assume release binaries with debug information.
--force Force updating files.
--dry-run Simulation mode. Behave normally, but do not
copy/update any files.
--no-plugins Skip plugin deployment.
--no-libraries Skip library deployment.
--qmldir <directory> Scan for QML-imports starting from directory.
--no-quick-import Skip deployment of Qt Quick imports.
--no-translations Skip deployment of translations.
--no-system-d3d-compiler Skip deployment of the system D3D compiler.
--compiler-runtime Deploy compiler runtime (Desktop only).
--no-compiler-runtime Do not deploy compiler runtime (Desktop only).
--webkit2 Deployment of WebKit2 (web process).
--no-webkit2 Skip deployment of WebKit2.
--json Print to stdout in JSON format.
--angle Force deployment of ANGLE.
--no-angle Disable deployment of ANGLE.
--list <option> Print only the names of the files copied.
Available options:
source: absolute path of the source files
target: absolute path of the target files
relative: paths of the target files, relative
to the target directory
mapping: outputs the source and the relative
target, suitable for use within an
Appx mapping file
--verbose <level> Verbose level.
Qt libraries can be added by passing their name (-xml) or removed
by passing the name prepended by --no- (--no-xml). Available libraries:
bluetooth clucene concurrent core declarative designer designercomponents
enginio gui qthelp multimedia multimediawidgets multimediaquick network nfc
opengl positioning printsupport qml qmltooling quick quickparticles quickwidgets
script scripttools sensors serialport sql svg test webkit webkitwidgets
websockets widgets winextras xml xmlpatterns webenginecore webengine
webenginewidgets 3dcore 3drenderer 3dquick 3dquickrenderer 3dinput geoservices
Arguments:
[files] Binaries or directory containing the binary.
发现当windeploy
有一个参数为二进制文件
时,会在其所在目录下生成该文件所依赖的所有文件。
提取依赖文件
于是我们可以在任意目录下新建一个文件夹,然后将Qt编译生成的可执行文件
复制到新文件夹下。
接下来在命令提示符里执行windeploy yourProgram.exe
便可以将其所需依赖加入到新文件夹中了。
> C:\Qt\Qt5.5.0\5.5\mingw492_32\bin\windeployqt.exe Library.exe
Library.exe 32 bit, release executable
Adding Qt5Svg for qsvgicon.dll
Direct dependencies: Qt5Core Qt5Gui Qt5Sql Qt5Widgets
All dependencies : Qt5Core Qt5Gui Qt5Sql Qt5Widgets
To be deployed : Qt5Core Qt5Gui Qt5Sql Qt5Svg Qt5Widgets
Updating Qt5Core.dll.
Updating Qt5Gui.dll.
Updating Qt5Sql.dll.
Updating Qt5Svg.dll.
Updating Qt5Widgets.dll.
Updating libGLESV2.dll.
Updating libEGL.dll.
Updating D3Dcompiler_47.dll.
Creating directory iconengines.
Updating qsvgicon.dll.
Creating directory imageformats.
Updating qdds.dll.
Updating qgif.dll.
Updating qicns.dll.
Updating qico.dll.
Updating qjp2.dll.
Updating qjpeg.dll.
Updating qmng.dll.
Updating qsvg.dll.
Updating qtga.dll.
Updating qtiff.dll.
Updating qwbmp.dll.
Updating qwebp.dll.
Creating directory platforms.
Updating qwindows.dll.
Creating directory sqldrivers.
Updating qsqlite.dll.
Updating qsqlmysql.dll.
Updating qsqlodbc.dll.
Updating qsqlpsql.dll.
Creating C:\Users\Shintaku\Desktop\release\translations...
Creating qt_ca.qm...
Creating qt_cs.qm...
Creating qt_de.qm...
Creating qt_fi.qm...
Creating qt_fr.qm...
Creating qt_hu.qm...
Creating qt_it.qm...
Creating qt_ja.qm...
Creating qt_ko.qm...
Creating qt_lv.qm...
Creating qt_ru.qm...
Creating qt_sk.qm...
Creating qt_uk.qm...

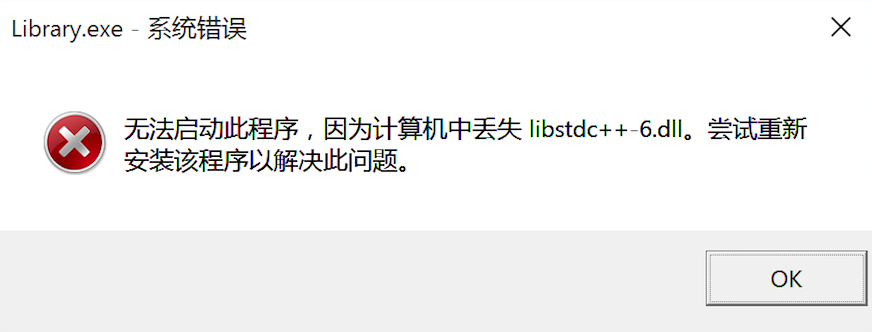

强烈建议在此文件夹下运行一下程序试试,因为这个工具并不一定能将所有必需的依赖加进来,这时运行极有可能还会报
如果这样,请移步~/Qt/Qt5.5.0/5.5/mingw492_32/bin
下找到缺少的.dll
文件将它们移到新文件夹下。经过这步检查,在开发环境下应该可以正常运行可执行文件了。
修改引用路径
这时请把这个文件夹拷贝到其他运行环境上测试程序是否能成功运行:如果可以成功运行,那么请跳过这一步;如果不能成功运行,而且依旧报
This application failed to start because it could not find or load the Qt platform plugin “windows”.
则说明程序没有成功引用到动态链接库,这时应当修改源代码。
找到工程中的main.cpp
文件,在主函数开头中加入一句1
QApplication::addLibraryPath(".");
重新编译并替换新文件夹中的.exe文件,再放到其他运行环境上就应该可以成功引用到链接库了。
打包程序发布
这时我们就可以打包程序了。我使用的是一款叫做Enigma Virtual Box的封装工具,这个软件的名字和当年图灵破译的英格玛机一样。

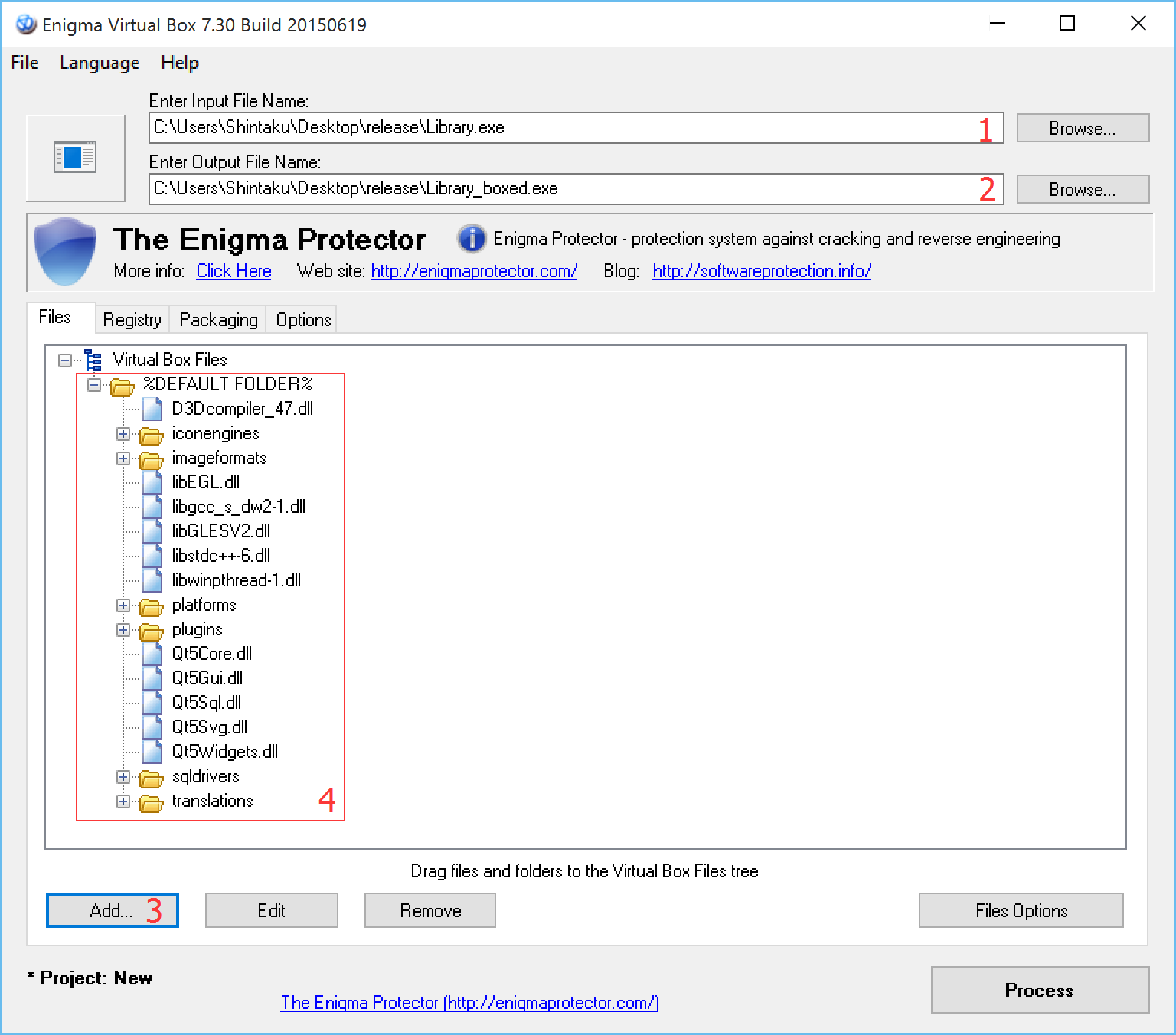

软件装好后运行,从主界面选择输入目标文件和输出文件的路径,然后在下面Files
里添加所有需要的链接库

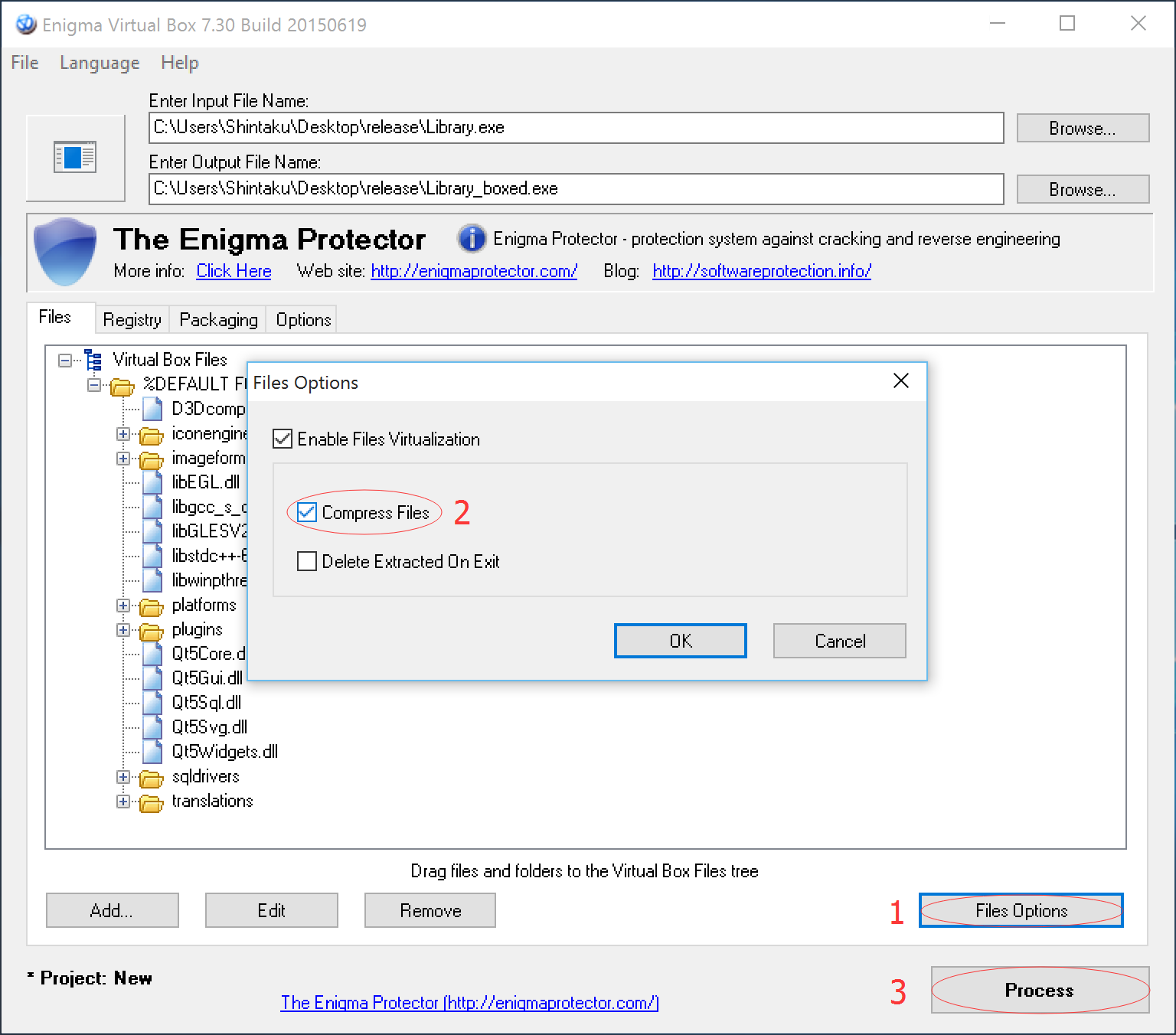

然后有一个Files Options
里可选是否压缩文件,压缩后会比较小,然后点Process
就行了
不久后会在选择的输出路径中生成最终打包好的程序,大功告成。
-
